Description

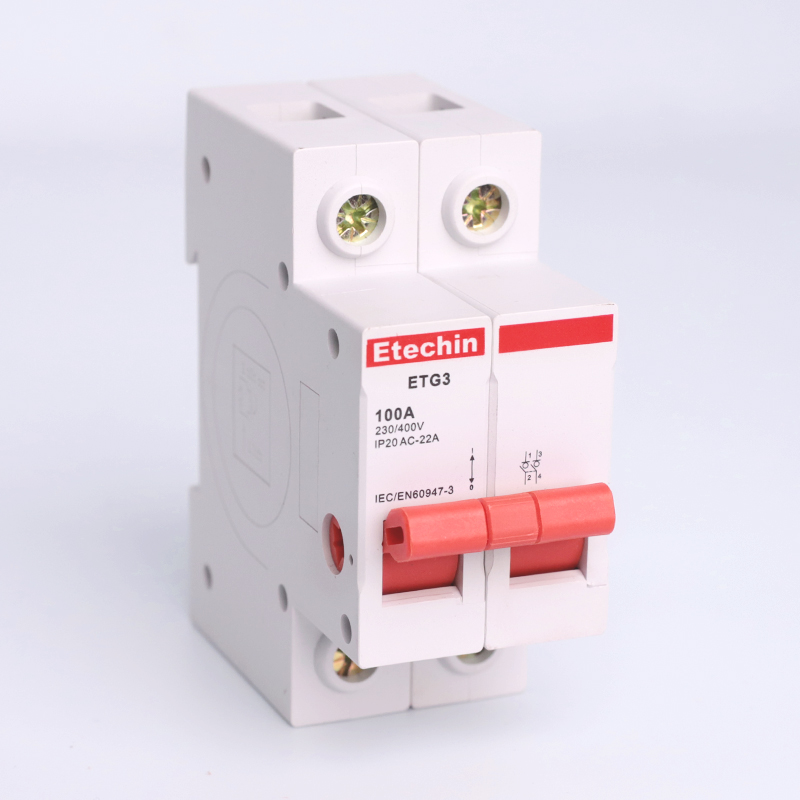

ETG3-100 series isolator is suitable for using in the distributing and controlling loop with AC 50Hz or 60Hz, rated working voltage 230/400V, 240/415V and below. It is mainly used for terminal electrical main switch, also can be used for controlling different motor, small power electrical and lighting , the low-voltage terminal distribution in the industry, civil building such as home and residence, energy, communication, infrastructure, lighting distribution system or motor distribution and other fields.

ETG3-100 series isolator is in complied with GB14048.3/ IEC60947-3 standards standard.
The rated current of this isolating switch is 32A, 40A, 63A, 80A, or 100A
The rated working voltage of this isolating switch is 240 or 415V and below.
The pole number of the breaker can be classified as : single pole (1p), double poles (2p), three poles (3p), and four poles(4p).
The isolator terminals are IP20 protection which is designed for finger and hand touch safe to keep the safety during installation.
The isolator can work reliably in harsh environment, in ambient temperature from -5°C to 50°C.
It’s mounting type is to be mounted on din rail EN60715 35mm.
Mechanical and electric life: the mechanical life is 20000 times, and electric life 10000 times.

Standard	IEC/EN 60947-3
Electrical	Rated current in	A	32,40,63,80,100A
features	Poles		1P 2P 3P 4P
	Rated voltage Ue	V	240/415
	Utilization Category		AC22A
Mechanical	Electrical life		above 10000
features	Machanical life		above 20000
	Terminal Capacity	mm	35
	Terminal Protection		Finger and Hand touch safe
	Installation		Mounting on 35mm Din-rail
	Degree of Protection		IP20
